Camozzi 3/2 way 5/2 way solenoid valve 230V AC 24V DC 110V AC 12V DC 334-015-02 344-015-02 358-015-02 354-015-02 334-015-02-G77 358-015-02-G72 354-015-02-G77
Order Codes:
| 334-015-02 | 3/2 way, 1/4", NC, without coil |
| 344-015-02 | 3/2 way, 1/4", NO, without coil |
| 358-015-02 | 5/2 way, 1/8", without coil |
| 354-015-02 | 5/2 way, 1/4", without coil |
| 364-011-02 | 5/3 way CC, 1/4", without coil |
| 334-015-02-G77 | 3/2 way, 1/4", NC 24V DC 3.1W /48V AC 3.8VA |
| 334-015-02-G7J | 3/2 way, 1/4", NC 230V AC 3.5VA |
| 334-015-02-G7K | 3/2 way, 1/4", NC 110V AC 3.8VA |
| 334-015-02-G73 | 3/2 way, 1/4", NC 24V DC 5W |
| 334-015-02-G72 | 3/2 way, 1/4", NC 12V DC 5W |
| 344-015-02-G77 | 3/2 way, 1/4", NO 24V DC 3.1W /48V AC 3.8VA |
| 344-015-02-G7J | 3/2 way, 1/4", NO 230V AC 3.5VA |
| 344-015-02-G7K | 3/2 way, 1/4", NO 110V AC 3.8VA |
| 344-015-02-G73 | 3/2 way, 1/4", NO 24V DC 5W |
| 344-015-02-G72 | 3/2 way, 1/4", NO 12V DC 5W |
| 358-015-02-G77 | 5/2 way, 1/8", 24V DC 3.1W /48V AC 3.8VA |
| 358-015-02-G7J | 3/2 way, 1/8", 230V AC 3.5VA |
| 358-015-02-G7K | 3/2 way, 1/8", 110V AC 3.8VA |
| 358-015-02-G73 | 3/2 way, 1/8", 24V DC 5W |
| 358-015-02-G72 | 3/2 way, 1/8", 12V DC 5W |
| 354-015-02-G77 | 5/2 way, 1/4", 24V DC 3.1W /48V AC 3.8VA |
| 354-015-02-G7J | 5/2 way, 1/4", 230V AC 3.5VA |
| 354-015-02-G7K | 5/2 way, 1/4", 110V AC 3.8VA |
| 354-015-02-G73 | 5/2 way, 1/4", 24V DC 5W |
| 354-015-02-G72 | 5/2 way, 1/4", 12V DC 5W |
How to order:
Specification:

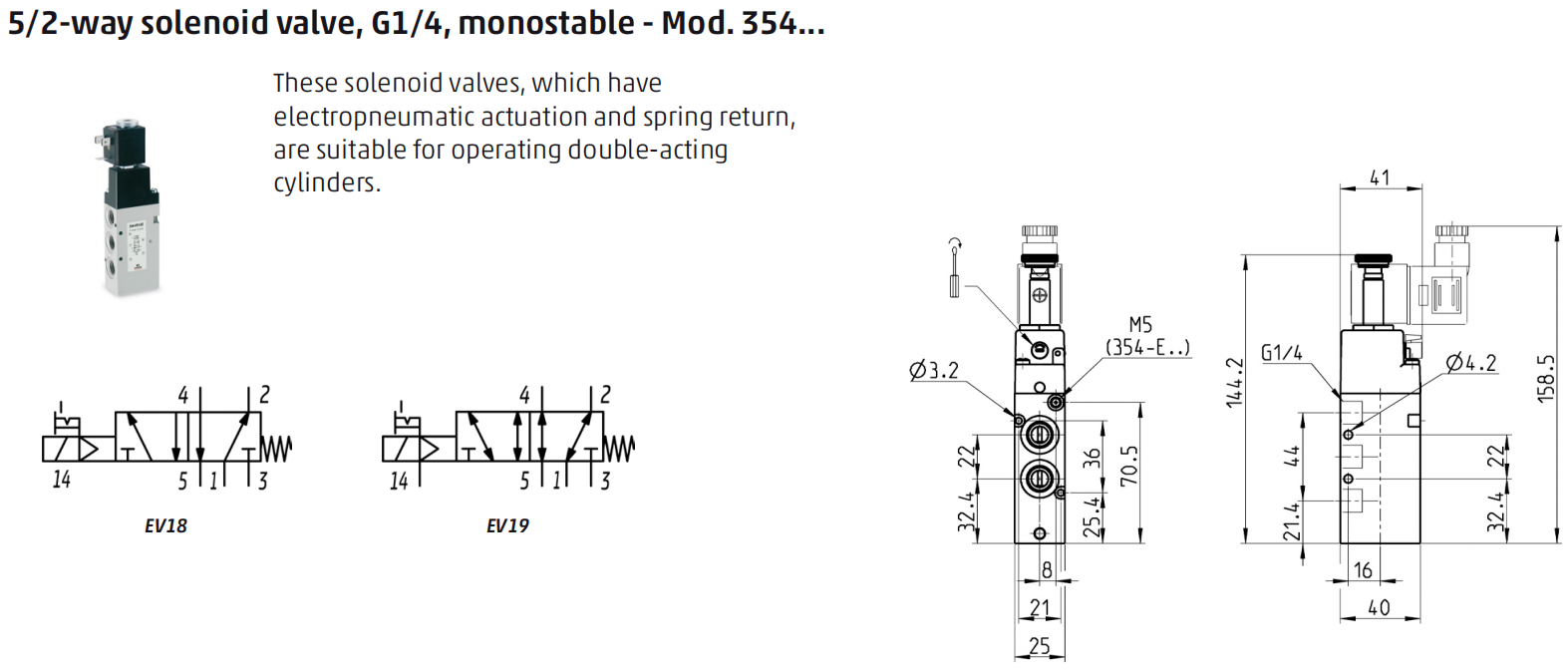

Drawing:
Ningbo Fly/Airwolf Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.
FAQ:
Q: Where is your factory ? Can we visit your factory?
A: Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q. What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
Warranty
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Product Tags:
|
|
Camozzi 3/2 5/2 Way Solenoid Valve 1/8 1/4 Port 24V DC 230V AC 334-015-02 344-015-02 358-015-02 354-015-02 334-015-02-G77 334-015-02-G7J 334-015-02 Images
|
